GAMP100W-HE09 PA MODULE V1

GAMP100W-HE09 PA MODULE V1

Model GAMP100W-HE09 PA MODULE V1
Frequency [MHz] min 650
Frequency [MHz] max 1100
Gain [dB] 50.5
Output level [dBm] 48.5 sat.
Noise figure [dB] -
IP3 [dBm] >52
Supply [V/mA] 20-32
Connector QMA/N
View product datasheet
Request a quote

Additional information

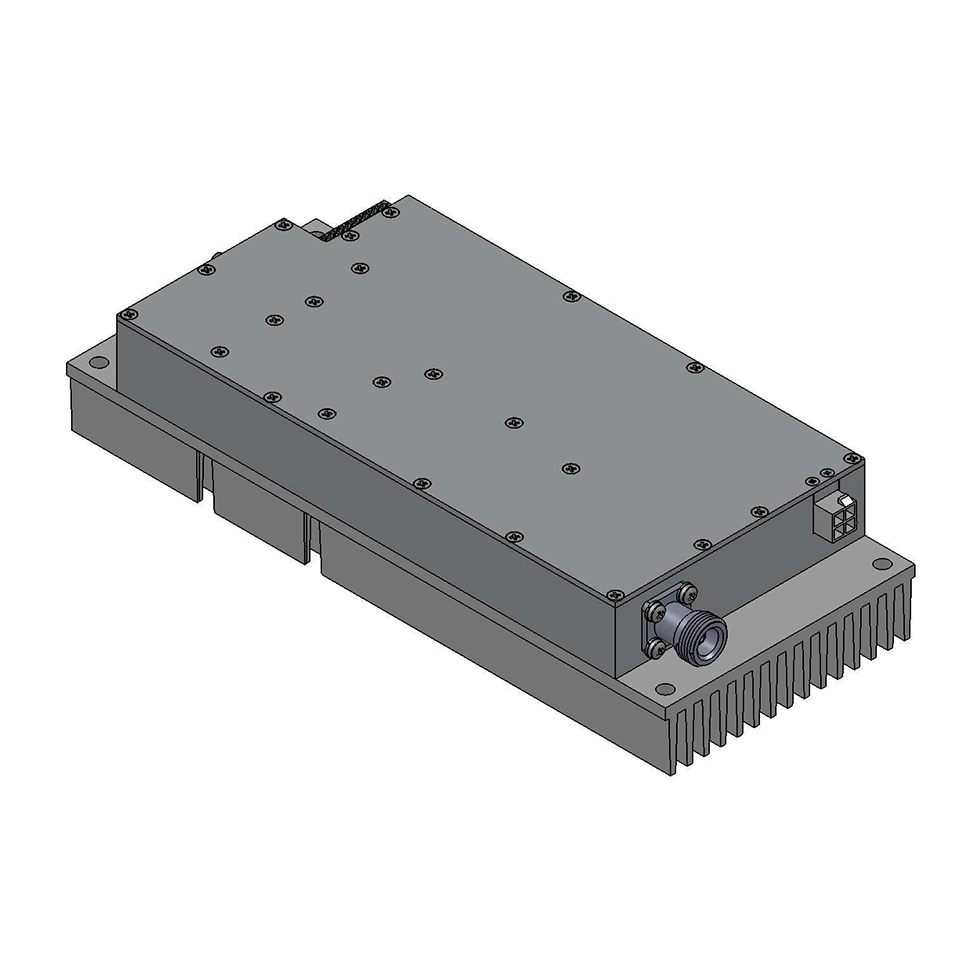

GAMP100W-HE09 PA MODULE V1

GAMP100W-HE09_PA_MODULE is solid state type efficient high power amplifier for frequency range 700-960MHz. The device can be used in wider frequency range 650 -1100MHz with reduced performance. The amplifier has wide supply range, over-temperature alarm and protection.

KEY FEATURES:

  • High output power
  • High efficiency
  • High gain
  • Compact
  • Wide supply range
  • Built-in protections
  • RoHS compliance

APPLICATIONS:

  • LTE800 and EGSM900
  • Radio-transmitters
  • Cellular networks
  • High power RF drivers
  • Laboratories
  • Test equipment
